Thermopile Infrared Arrays and
Thermal Imaging

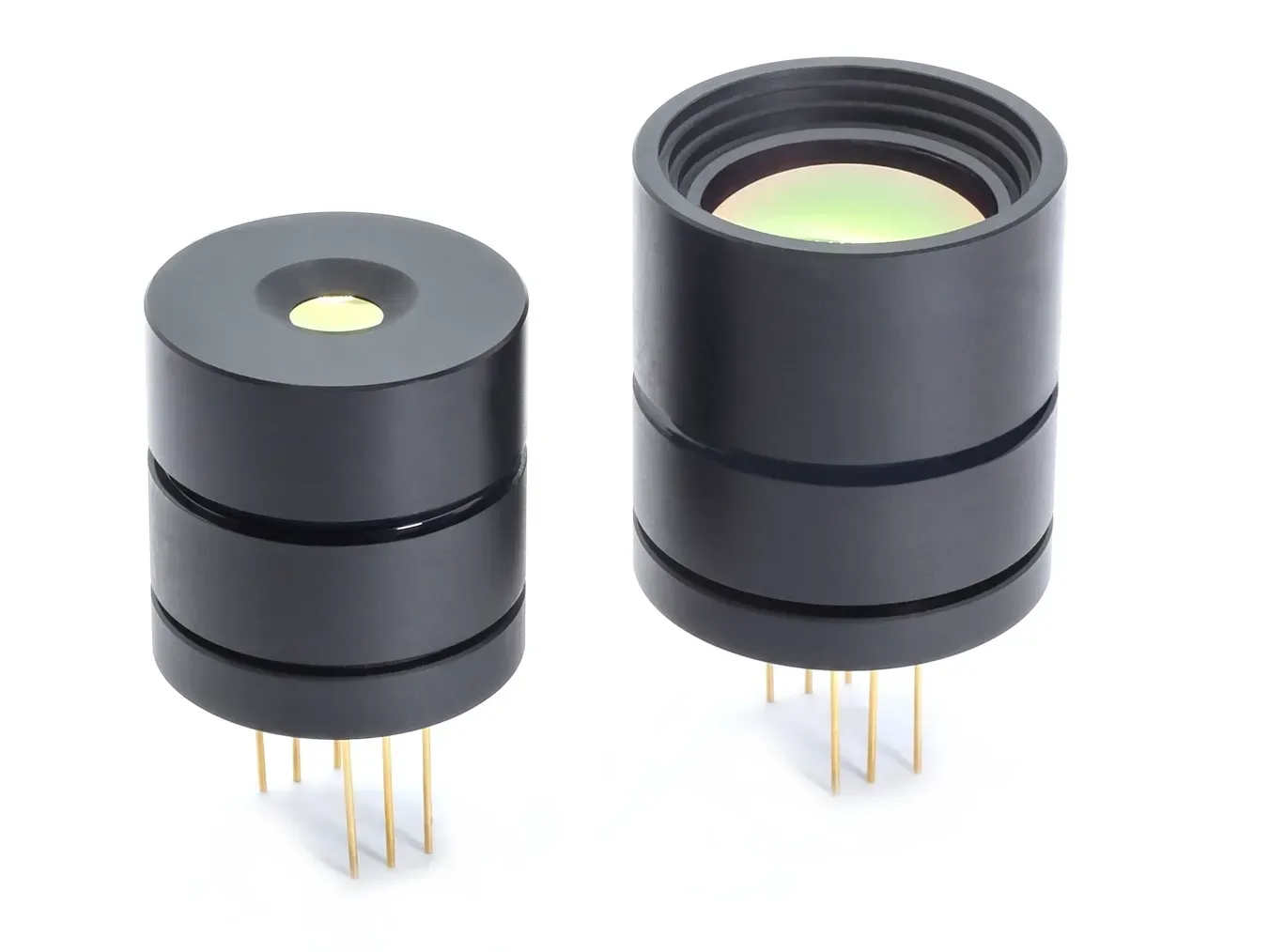

For the manufacturing of thermopile infrared array sensors, also called thermal array sensors or thermal matrix sensors, Heimann Sensor offers the highest quality and the world's most advanced technology for realizing low-cost/high-performance sensors for far infrared thermal imaging solutions. We offer a wide range of products ranging from small infrared arrays with 8x8 elements, medium sized arrays with 16x16 and 32x32 elements to larger thermopile arrays with up to 80x64 and 120x84 elements for higher spatial resolutions. All our thermopile infrared array sensor chips can be combined with different optics. They provide either wide fields-of-view with over 90° or narrow fields-of-view for measurements and detection from a greater distance.

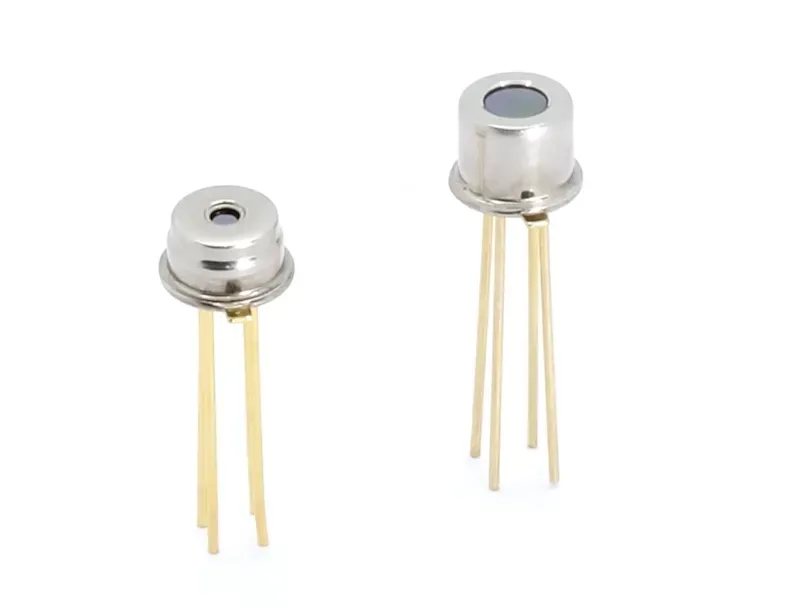

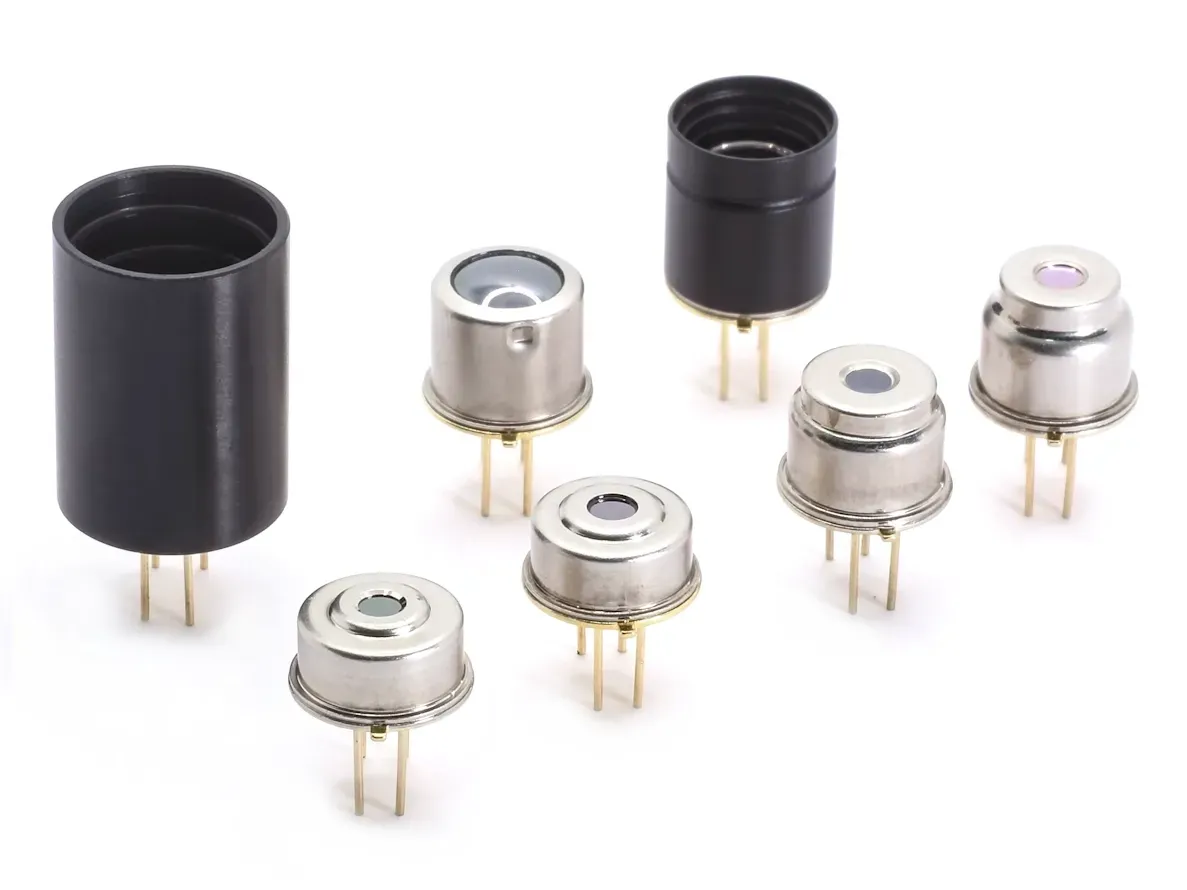

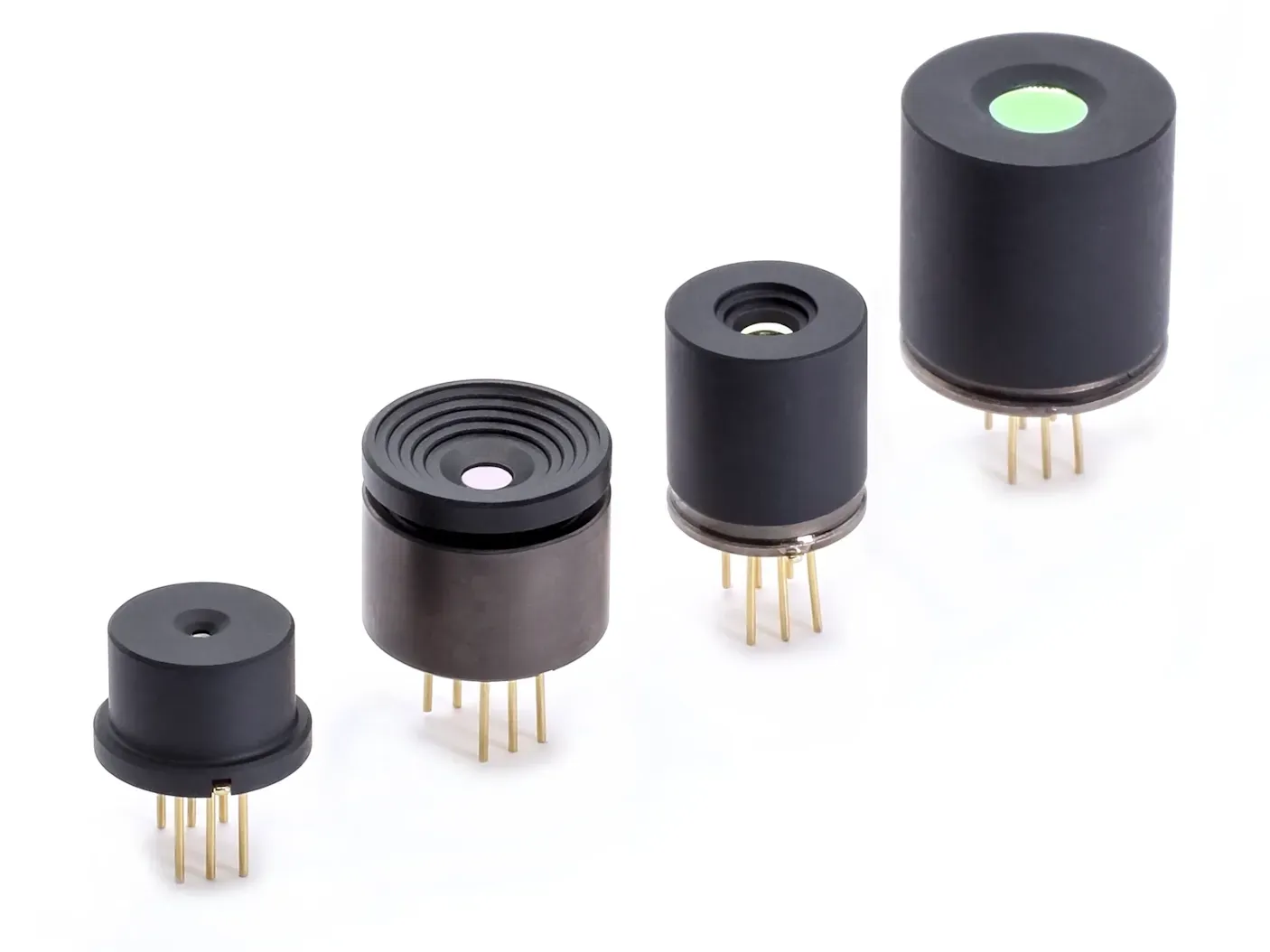

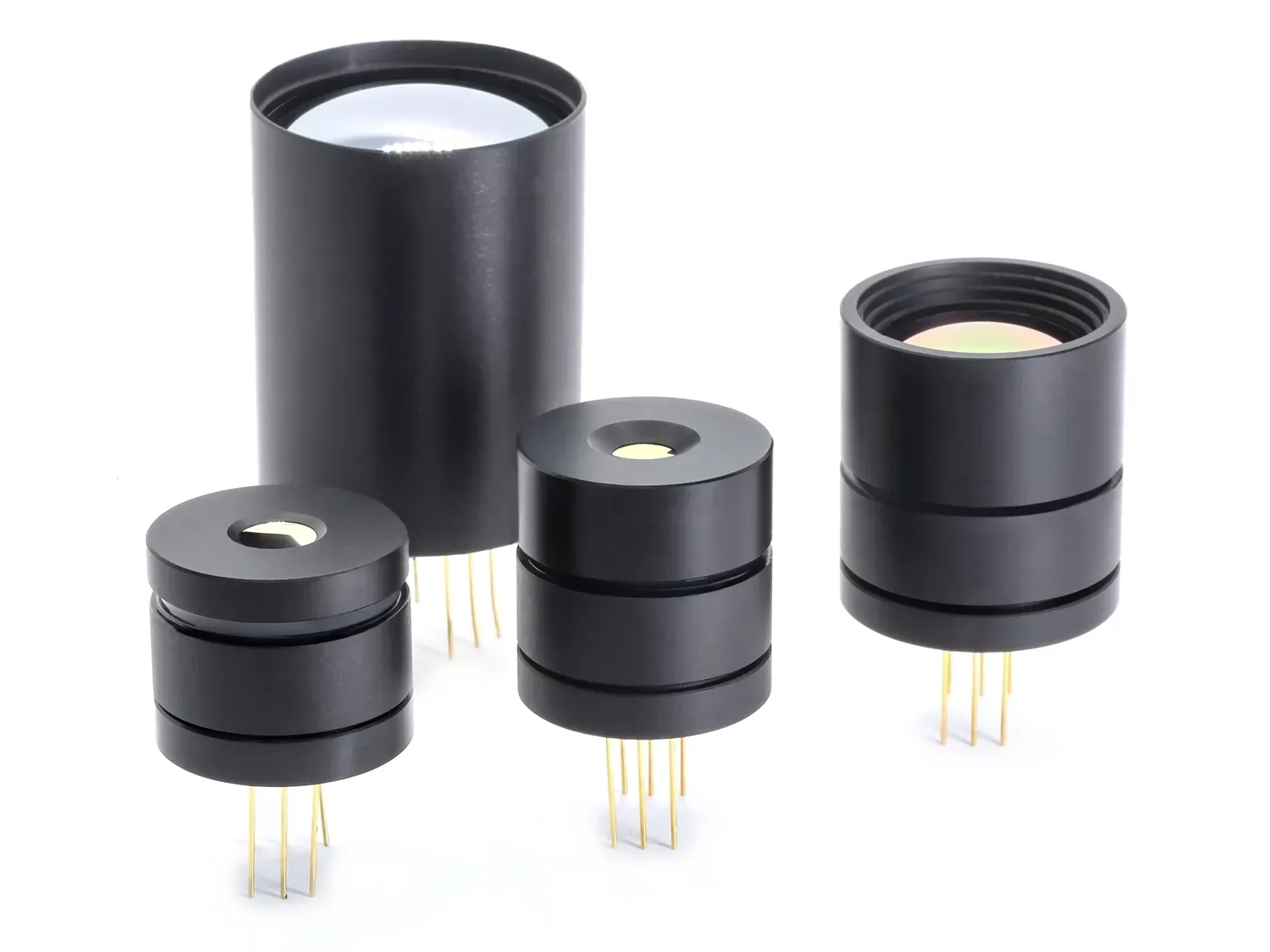

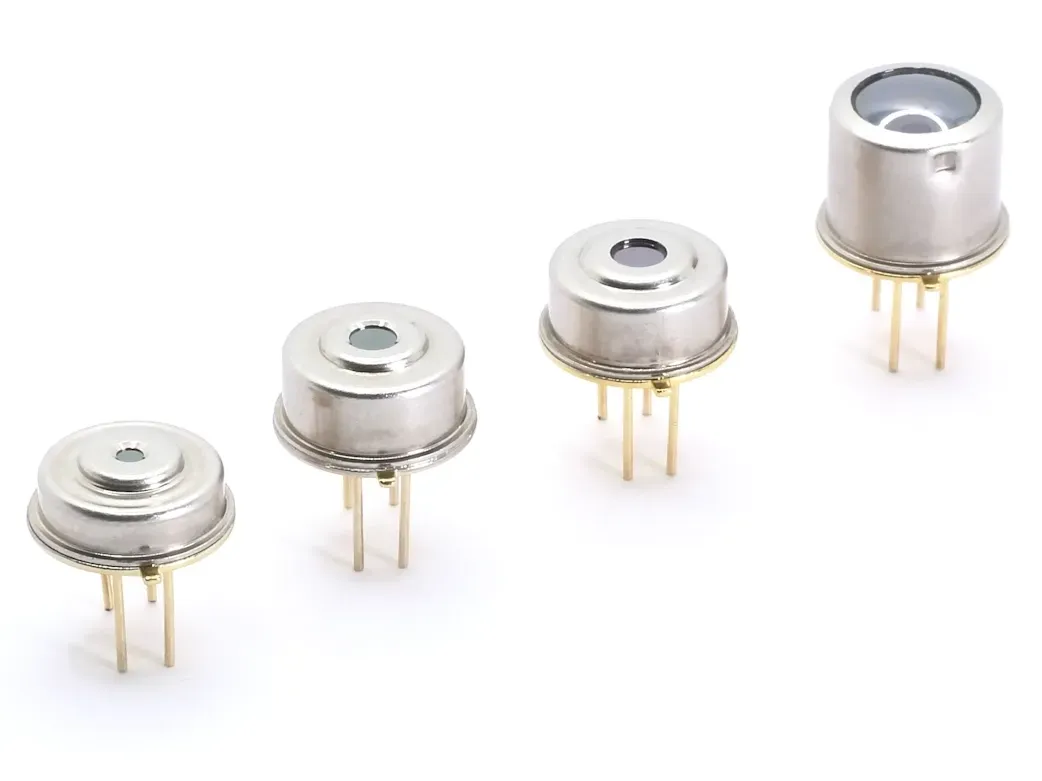

All our thermopile arrays have a built-in EEPROM for storage of calibration data. Our 8x8 arrays are installed inside a tiny TO-46 housing while our medium sized arrays are mounted in a still small TO-39. Due to their digital I²C interface, our small- and medium-sized arrays need only four pins for power supply and data transmission. Our large arrays fit into a TO-8 housing with 6 pins, communicate via an SPI interface and can be operated up to 40 Hz.
Video: New Generation of Thermopile Arrays
Watch our company video and learn more about the variety of application solutions our thermopile arrays offer.
