120x84 Thermopile Infrared Array

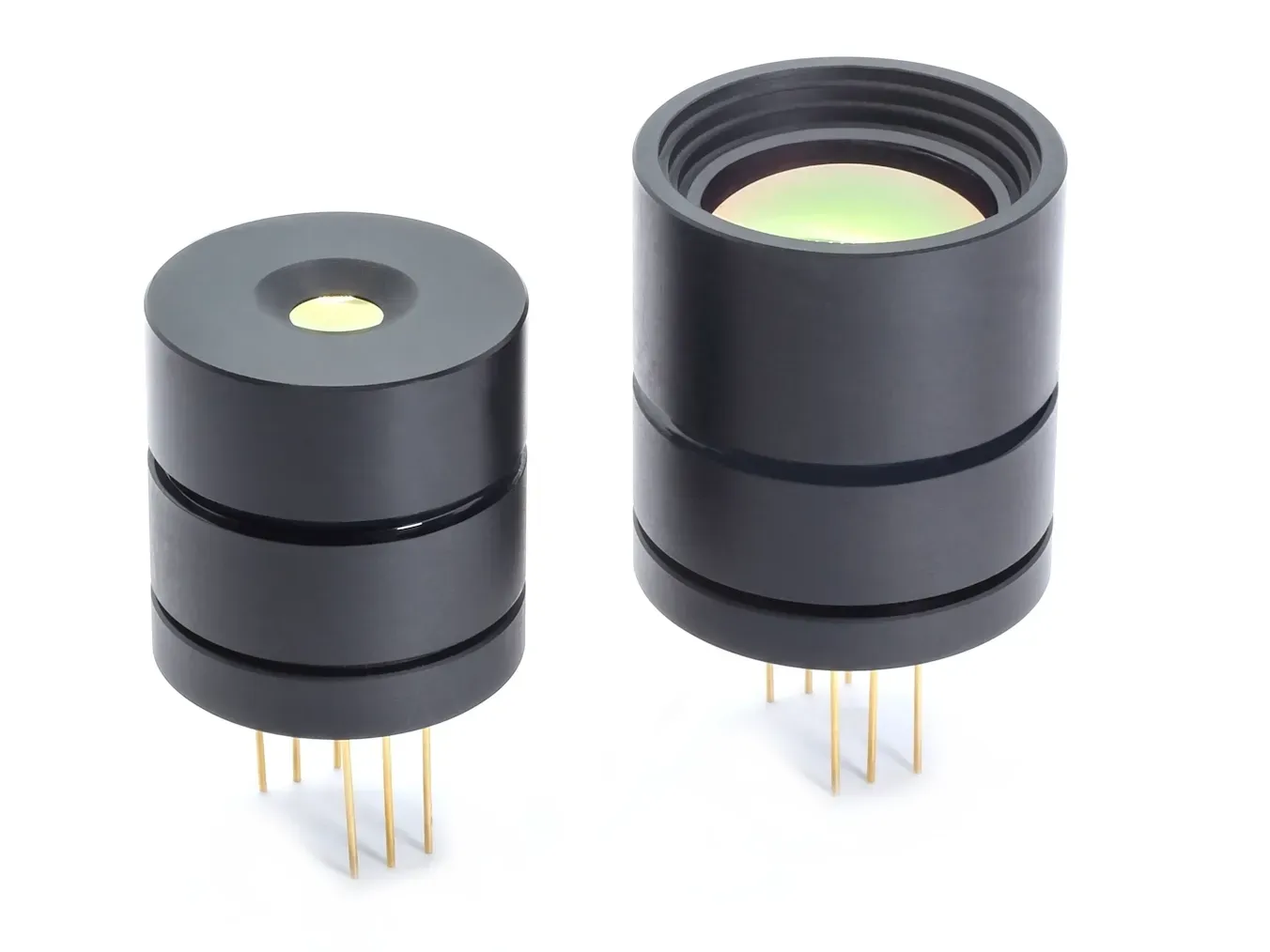

The HTPA120x84d is our highest resolution thermopile infrared array inside a TO-8 housing, which is best for thermal imaging.
Due to the digital SPI interface, only six pins are needed for operation. It has a 16-bit ADC and built-in EEPROM stores all calibration data. The framerate can be set individually and depends on the sensor clock and ADC resolution
For high 16-bit resolution, framerates of 9 Hz are possible, while lower ADC resolutions allow framerates of up to 30 Hz and more. Different available optical lenses, integrated with the array in TO-8 housing, provide fields of view (FOV) from 12x9 degree up to 120x90 degree.
The 120x84 array can be used as drop-in solution for the 80x64 array as it provides the same PIN-out and dimensions.
Features and Benefits
- 120x84 thermopile pixel elements
- True shutterless operation
- 12x9° to 120x90° FOV
- high framerates of 9 Hz to 50 Hz
- 16-bit ADC resolution
- high object temperature range
Specifications
| Value | Tolerance | Unit | |
|---|---|---|---|
| Supply voltage (DC) | 3.3 | +0.3/-0.0 | V |
| Current consumption | 30 | ± 5 | mA |
| Clock frequency (Sensor) | 10 | ± 5 | MHz |
| Ambient temperature range | -20 to 85 | °C | |
| Object temperature range | -20 to >1000 | °C | |
| Framerate (full frame) | 2 to 50 | Hz | |
| Framerate (quarter frame) | 12 to 300 | Hz | |
| NETD (best optics) | tbd* | mK@1Hz |
* NETD for Hi/UHi version

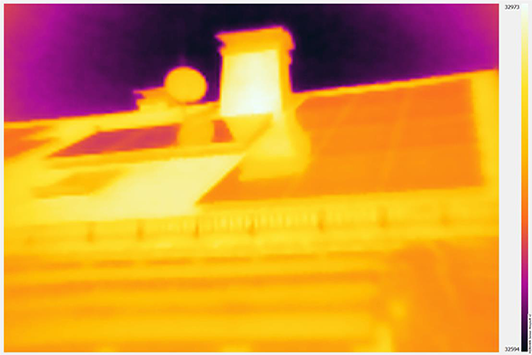

Example Pictures and Videos
