2D Arrays

Infrared Sensor Arrays with Analog Output

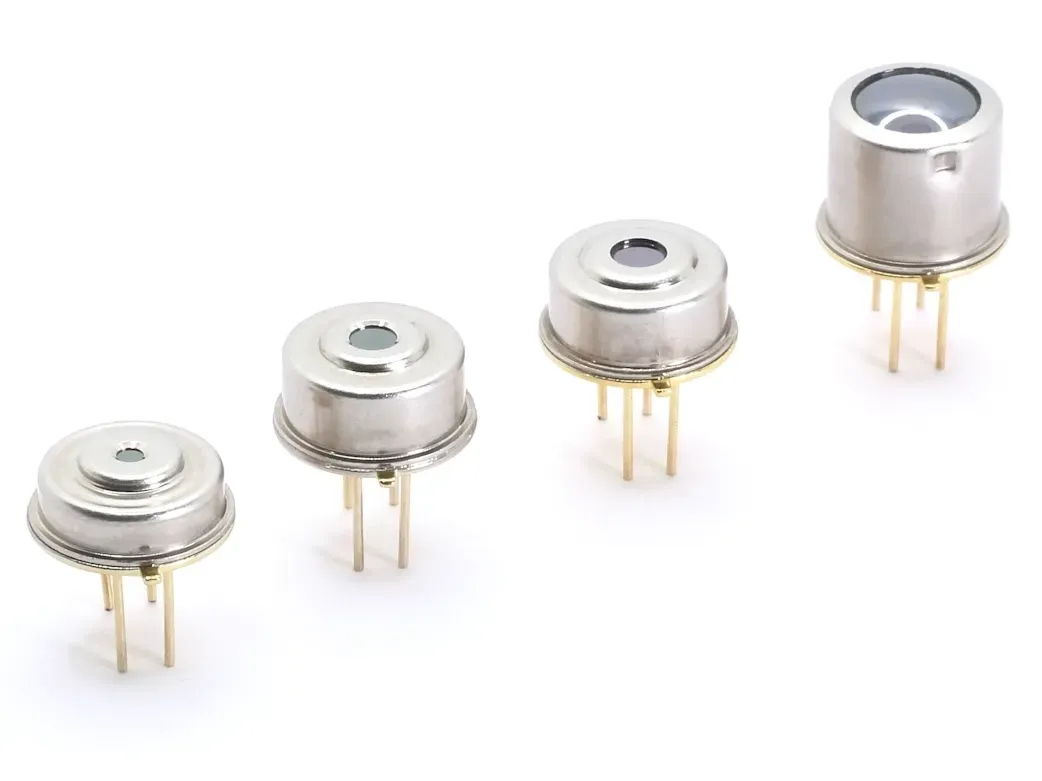

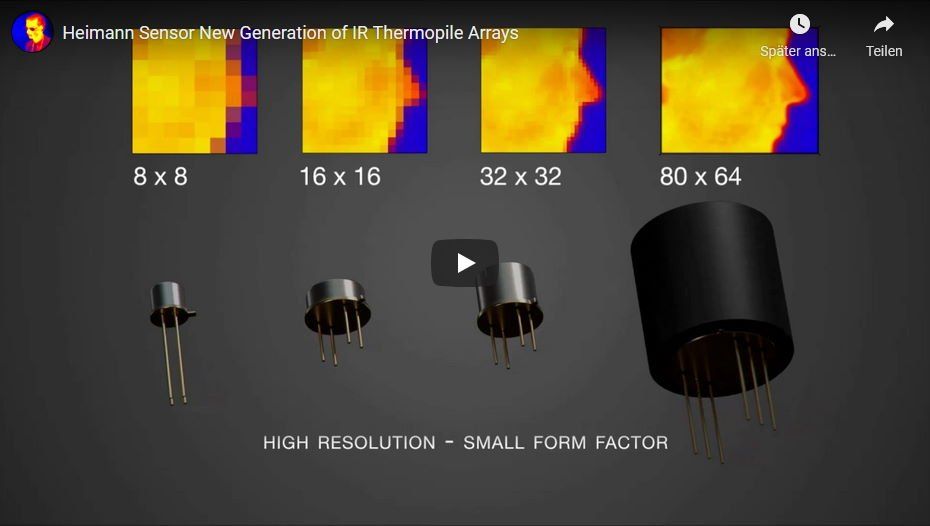

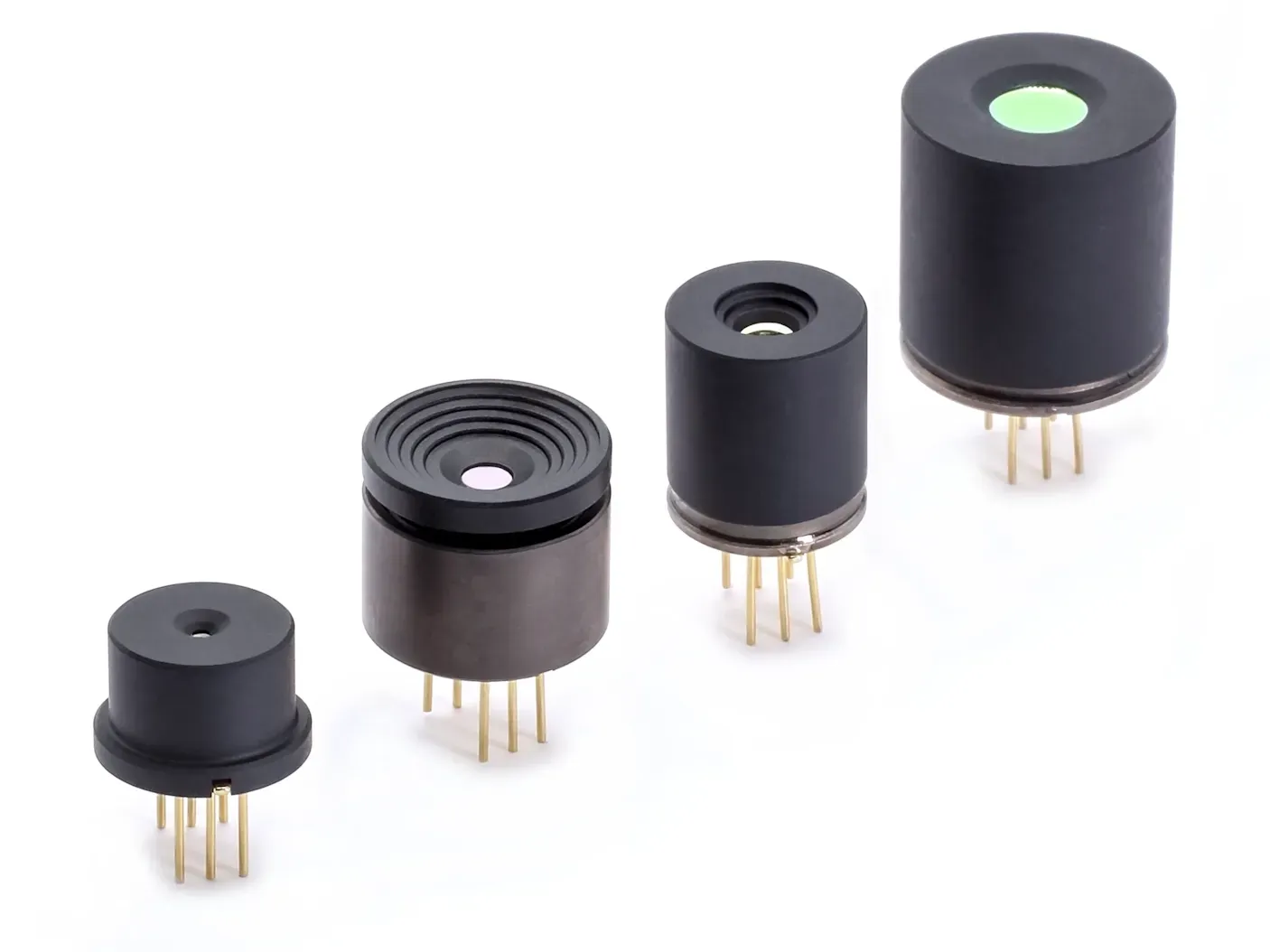

Our HTPA series consists of 2D arrays with different pixel counts:

 8x8 elements
 16x16 elements
 32x31 elements

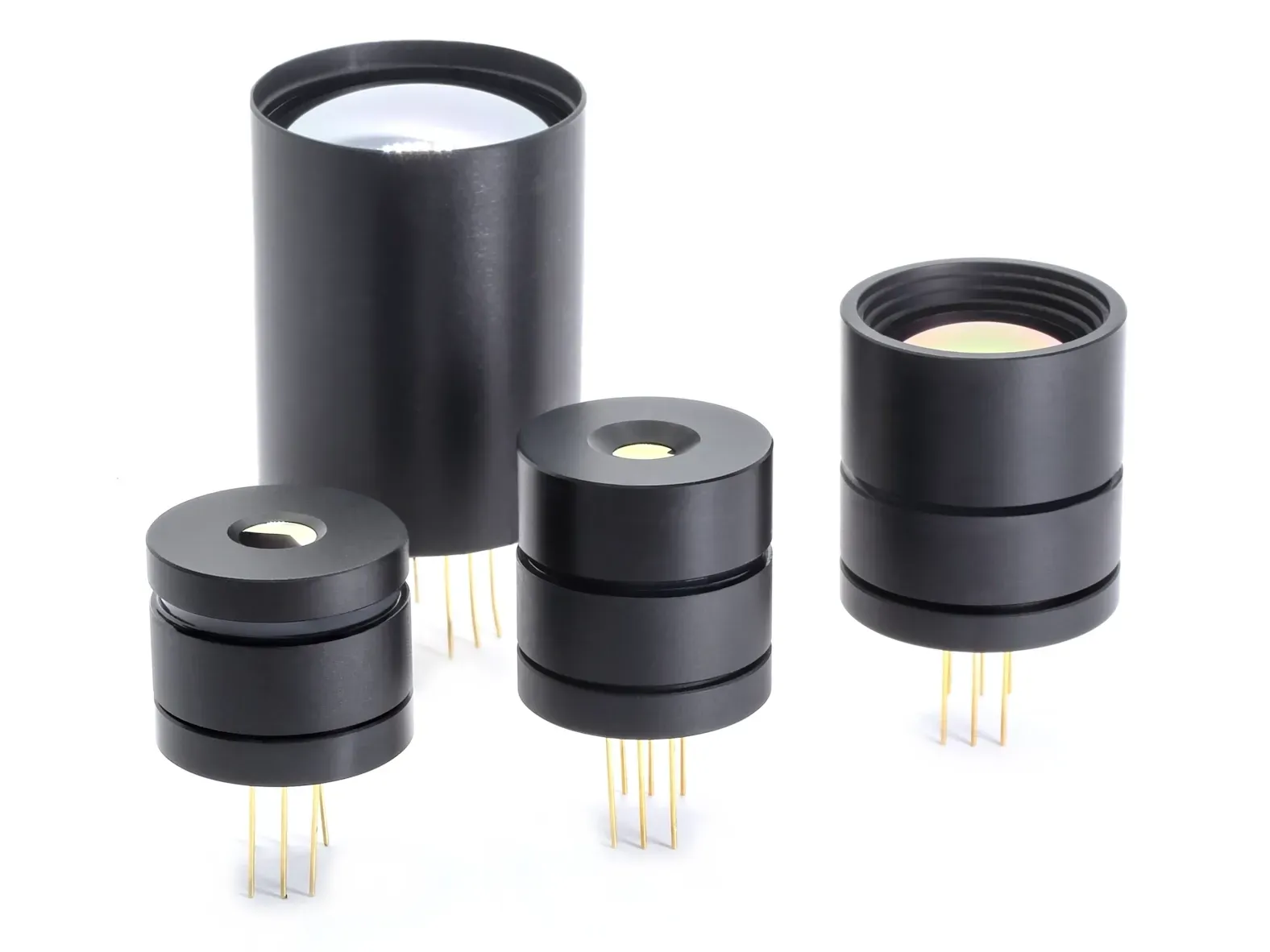

These discrete sensors can be configured with different kinds of lenses, resulting in a variety of field of views (FOV). Furthermore, we do customer specific optics on request. The small dimensions and the very low power consumption makes the HTPA series very attractive for handhelds and battery powered solutions. The sensor chip contains next to the sensor elements integrated low noise chopper amplifiers and low pass filters + temperature reference, voltage reference and an analogous output. Some types also provide an digital output, powered by their integrated 12bit ADC.

Infrared Sensor Array with I2C-compatible-Bus Interface

 16x4 elements
